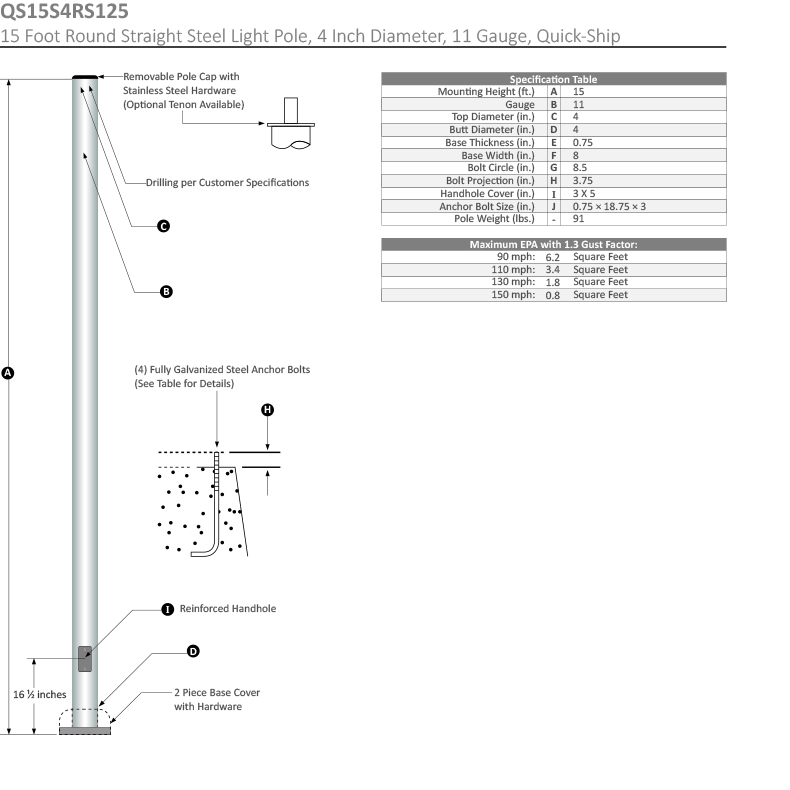

Pole Top Options: A removable pole cap is provided if the pole is drilled for attaching light fixtures. The drill pattern and drill orientation needs to be provided by the customer unless Energy Light fixtures are used for the project. If tenon option is selected, a 2-3⁄8 inch diameter tenon with 4 inch length is provided.
Pole Shaft: Pole shaft shall be weldable-grade, cold-rolled, commercial quality carbon steel tubing conforming to ASTM A500 Grade B 11 gauge.
Handhole: Reinforced, 3" x 5" Handhole with cover, stainless steel screw and backbar is located at 20.5 inches from the base. Ground lug is included.
Finish: Dark Bronze. Commercial grade, super durable powder coat finish.
Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 nuts and 2 washers. Top portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided.
Bolt Circle Range: Bolt circle range: 8"-11".
Base Cover: A 2-piece ABS plastic base cover is provided. Plastic rivets are included to securely attach the 2 pieces together after pole installation.
Warranty: 1 Year.
Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
- POLE HEIGHT:
- 15 Foot
- INSTALLATION TYPE:
- Anchor Base
- POLE SHAPE:
- Round
- WIDTH OR DIAMETER:
- 4 Inch
- GAUGE:
- 11 Gauge
