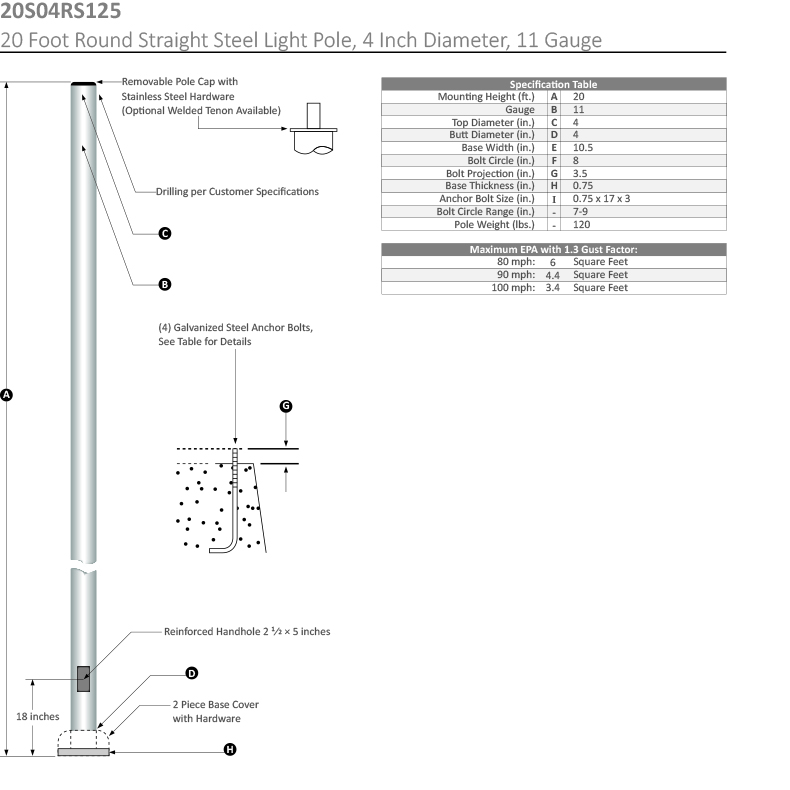

20 Foot Round Straight Steel Light Pole, 4 Inch Diameter, 11 Gauge

Pole Top Options: A removable pole cap is provided if the pole is drilled for attaching light fixtures. The drill pattern and drill orientation need to be provided by the customer unless Energy Light fixtures are used for the project. If tenon option is selected, a 2-3⁄8 inch or 3 inch diameter tenon with 4 inch length is provided.

Pole Shaft: Pole shaft shall be weldable-grade, cold-rolled, commercial quality carbon steel tubing conforming to ASTM A500 Grade B 11 gauge.

Handhole: Reinforced, 3" x 5" Handhole with cover, stainless steel screw and backbar is located at 18 inches from the base. Ground lug is included.

Finish: Commercial grade, super durable powder coat finish. Dark Bronze, White, Black, Gray colors are provided at no extra charge. Other colors and custom colors are available with extended lead times and additional surcharge.

Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 nuts and 2 washers. Top portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided.

Bolt Circle Range: 8.5" (Bolt circle range: 8"-11")

Base Cover: Two-piece steel square base cover. Stainless steel screws are included to attach the 2 pieces together after pole installation.

Other Options: The following options are available: Custom tenon sizes, custom colors, electric/GFI outlets, custom pole heights, additional handholes and custom base plate dimensions.

Warranty: 1 Year.

Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.

Advantages of Steel Light Poles

High Wind Load Capacity - Steel poles are ideal for areas with strong winds or extreme weather conditions, offering superior stability and strength.

Cost-Effective for Large Projects - Steel poles are more affordable than other materials, making them an economical choice for large-scale installations like parking lots or municipal lighting.

Heavy Load Support -Steel can support heavier lighting fixtures, making it perfect for projects requiring multiple or large-scale LED installations.

Durability in Harsh Environments - With proper powder coating or galvanizing, steel light poles resist corrosion, ensuring long-lasting performance in urban or industrial settings.

Low Maintenance - Steel poles, when coated for protection, require minimal maintenance, reducing long-term costs for commercial properties.

Applications for 20 Foot Round Straight Steel Light Pole

This 20-foot round steel light pole is perfect for commercial applications where aesthetics and smooth design are important. The round shape offers a sleek and modern look, making it ideal for urban settings like retail centers, business parks, and parking lots. Its low wind resistance also makes it suitable for areas with moderate wind exposure, providing a reliable lighting solution that maintains structural integrity in various conditions.
