30 Foot Aluminum Street Light Pole with 4 Foot Mast Arm, 8 Inch Diameter, 0.156 Inch Wall Thickness

Item #
30A8RT1561M4
  • Natural Aluminum Finish
  • Dark Bronze Powder Coat (+$180 per pole)
  • Black Powder Coat (+$180 per pole)
  • White Powder Coat (+$180 per pole)
  • Gray Powder Coat (+$180 per pole)
  • Green Powder Coat (+$180 per pole)
$2,517.00

Get A Free Quote
30 Foot Aluminum Street Light Pole with 4 Foot Mast Arm, 8 Inch Diameter, 0.156 Inch Wall Thickness. Item Number: 30A8RT1561M4
Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

Material

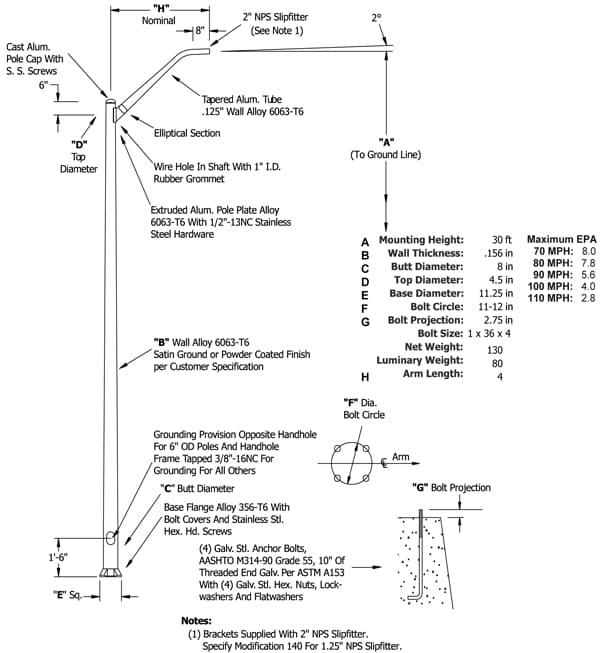

This aluminum street light pole comes complete with 1 mast arm that is 4 feet long and specifically designed to be an integral part of this pole. The pole shaft is made from aluminum alloy 6063-T6 with a wall thickness of 0.156 inches, has an overall mounting height of 30 feet, and maximum EPA rating of 2.8 at 110 mph. The butt diameter is 8 inches and tapers to 4.5 inches in diameter at the top. To see the full specifications for our 30 Foot Aluminum Street Light Pole with 4 Foot Mast Arm and 8 Inch Bottom Diameter - 0.156 Inch, please click on the highlighted text. Our aluminum light poles are designed to American Association of State Highway & Transportation Officials (AASHTO) standards and meet all applicable material ASTM standards. All welders are American Welding Society (AWS) certified.

Anchor Bolts and Handhole Covers
This light pole includes anchor bolts made of galvanized steel (Grade 55 meeting AASHTO M314-90 standard) with a bolt circle diameter of 11 to 12 inches. A base flange with bolt covers, reinforced handhole with cover, and stainless steel hex-head screws are also included. For your convenience, anchor bolts can be pre-shipped for a nominal surcharge.

Color Options
Our standard aluminum light pole color is Natural Aluminum finish; however, we provide 5 other colors at no extra charge. Our thermoset powder coat process is in accordance with AAMA 2604 classification and is much superior to AAMA 2603 used by other manufacturers. We provide a color chart of available standard powder-coat finishes here. However, we caution that the colors you see on your screen may not be exactly the way they look on the poles and we cannot guarantee exact color.

10 Year Warranty
We are so confident that our aluminum light poles are the best that we offer an industry-leading 10 year warranty.


POLE HEIGHT:
30 Foot
INSTALLATION TYPE:
Anchor Base
POLE SHAPE:
Round Tapered
WIDTH OR DIAMETER:
8 Inch
WALL THICKNESS:
0.156 Inch
ARM LENGTH:
4 Foot
faq_category:
aluminum-light-poles
made_in_usa:
true
10_year_warranty:
true
