30 Foot Aluminum Street Light Pole with 8 Foot Davit Arm, 7 Inch Diameter, 0.188 Inch Wall Thickness

Item #
30A7RT1881D8
  • Natural Aluminum Finish
  • Dark Bronze Powder Coat (+$180 per pole)
  • Black Powder Coat (+$180 per pole)
  • White Powder Coat (+$180 per pole)
  • Gray Powder Coat (+$180 per pole)
  • Green Powder Coat (+$180 per pole)
$2,989.00

Get A Free Quote
30 Foot Aluminum Street Light Pole with 8 Foot Davit Arm, 7 Inch Diameter, 0.188 Inch Wall Thickness. Item Number: 30A7RT1881D8
Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

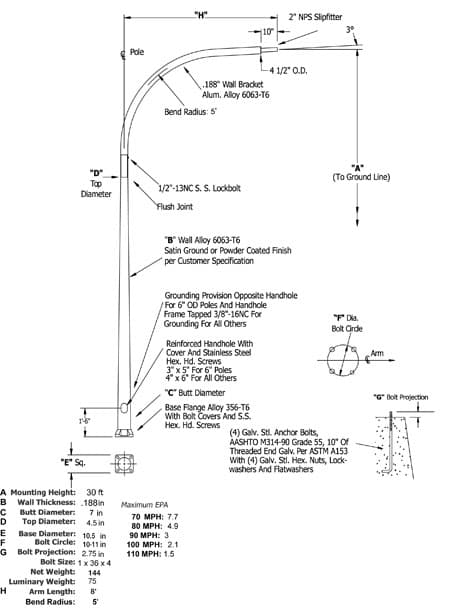

  • Mounting height: 30 ft.
  • Wall thickness: .188 in.
  • Butt diameter: 7 in.
  • Top diameter: 4.5 in.
  • Base diameter: 10.5 in.
  • Bolt circle: 10-11 in.
  • Bolt projection: 2.75 in.
  • Bolt size: 1 x 36 x 4 in.
  • Net weight: 144 lbs.
  • Luminary weight: 75 lbs.
  • Arm length: 8 ft.
Maximum EPA:
  • 70 MPH: 7.7
  • 80 MPH:  4.9
  • 90 MPH:  3
  • 100 MPH: 2.1
  • 110 MPH: 1.5

POLE HEIGHT:
30 Foot
INSTALLATION TYPE:
Anchor Base
POLE SHAPE:
Round Tapered
WIDTH OR DIAMETER:
7 Inch
WALL THICKNESS:
0.188 Inch
ARM LENGTH:
8 Foot
faq_category:
aluminum-light-poles
made_in_usa:
true
10_year_warranty:
true
