Product Description:
Pole Top Options: A removable pole cap is provided. Predrilled plugged tenon mounting holes are standard. 2-3⁄8 inch removable steel tenon is provided as an option.
Pole Shaft: Pole shaft shall be weldable-grade, cold-rolled, commercial quality carbon steel tubing conforming to ASTM A500 Grade B 11 gauge.
Handhole: Reinforced, 3" x 5" Handhole with cover, stainless steel screw and backbar is located at 18 inches from the base. Ground lug is included.
Finish: Dark Bronze. Commercial grade, super durable powder coat finish.
Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 nuts and 2 washers. Top portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided.
Bolt Circle Range: 12" (Bolt circle range: 10"-14").
Base Cover: Two-piece steel square base cover. Stainless steel screws are included to attach the 2 pieces together after pole installation.
Other Options: The following options are available: Custom tenon sizes, custom colors, electric/GFI outlets, custom pole heights, additional handholes and custom base plate dimensions.
Warranty: 1 Year.
Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.

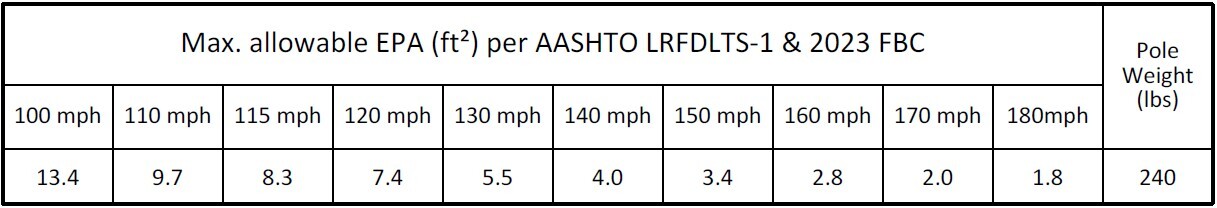

| Maximum EPA with 1.3 Gust Factor (ft²) | Pole Weight (lbs) | |||
| 110 mph | 130 mph | 150 mph | 180 mph | |
| 10.8 | 7.3 | 5.1 | 3.3 | 240 |
- POLE HEIGHT:
- 30 Foot
- made_in_usa:
- true
- ul_listed:
- true
- INSTALLATION TYPE:
- Anchor Base
- POLE SHAPE:
- Round Tapered
- WIDTH OR DIAMETER:
- 7.5 Inch
- GAUGE:
- 11 Gauge
- reqQuote:
- true
- quick_shipping:
- true
