This 30 foot square tapered steel light pole is perfect for your project needs. Select the options below or call our experienced representatives for custom options. Item Number: 30S713ST7
Highlights: Pole Top Options: Poles are provided with either a removable top cap or a welded steel tenon. A 2 3/8 inch outside diameter tenon with a 4 inch length is the most common; however, other diameters are available. Customers should confirm the appropriate tenon size required by their project prior to ordering. Poles with a top cap can also be drilled during fabrication. The drill pattern and orientation need to be provided by the customer unless our fixtures are being used for the project. Pole Shaft: Single piece pole shaft conforms to ASTM A595 Grade A or A572 Grade 55. The taper ratio of 0.11 in/ft is linear. Handhole: A 4 inch wide x 6.55 inch tall reinforced oval shaped handhole is provided at 18 inches from the base plate. A cover with a single screw to secure the latch mechanism is also provided. Base Cover: An ABS plastic base cover consisting of 2 pieces is provided. Plastic rivets are included to securely attach 2 pieces together after pole installation. To comply with certain engineering requirements, a steel base cover may be provided instead of ABS plastic material. Anchor Bolts: A set of 4 steel anchor bolts (Grade 55) conforming to ASTM F1554 are provided with each pole assembly. Each bolt includes 2 nuts and 2 washers. Bolts have an "L" bend on one end and are galvanized a minimum of 12 inches on the threaded end. An actual size paper anchor bolt template is provided. Color and Finish Options: Commercial grade, super durable powder coat is the standard option. Dark Bronze, white and black colors are provided at no extra charge. Other colors and custom colors options are available at a surcharge. Hot dip galvanizing is available with a surcharge and extended lead times. Powder coating galvanized poles is also available as a premium option. Other Options: The following options are available. Please consult one of our light pole experts for details:
- Vibration dampener
- Custom tenon size
- Custom color
- Electric/GFI outlet
- Additional handhole
- UL compliant handhole
- Custom base plate dimensions

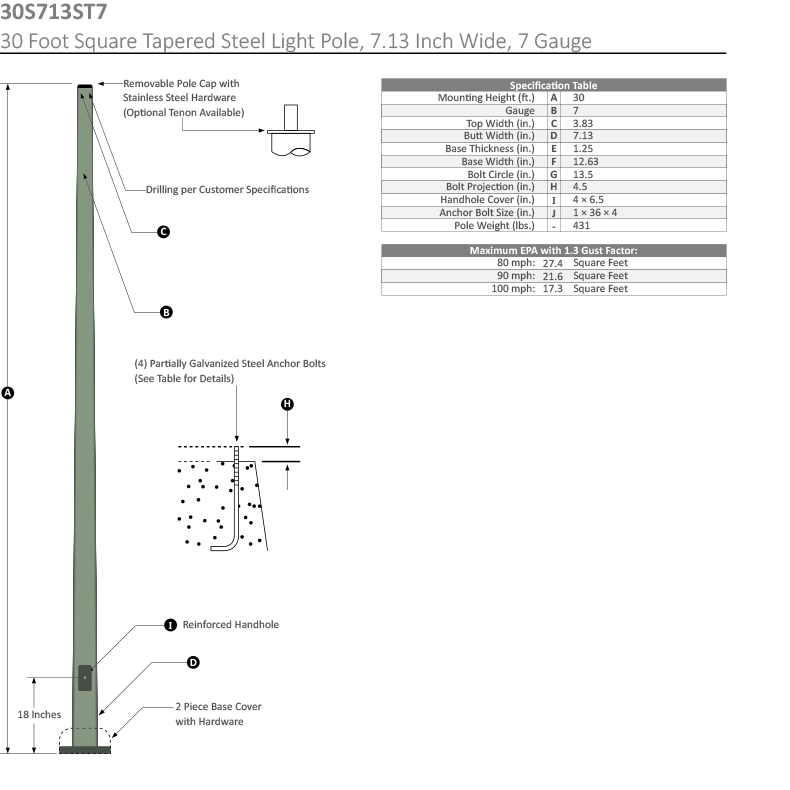

Product Specifications:
| Pole Height |
30 feet |
Gauge |
7 |
Bolt Circle |
13.5 inches |
|---|
| Shaft Diameter Bottom |
7.13 inches |
Shaft Diameter Top |
3.83 inches |
Anchor Bolt Size |
1 x 36 x 4 inches |
|---|
| Square Base Plate Width |
12.63 inches |
Base Plate Thickness |
1.25 inches |
Bolt Projection |
4.5 inches |
|---|
| Pole Weight |
431 pounds |
Maximum EPA at 90 MPH |
21.6 |
Maximum EPA at 100 MPH |
17.3 |
|---|
