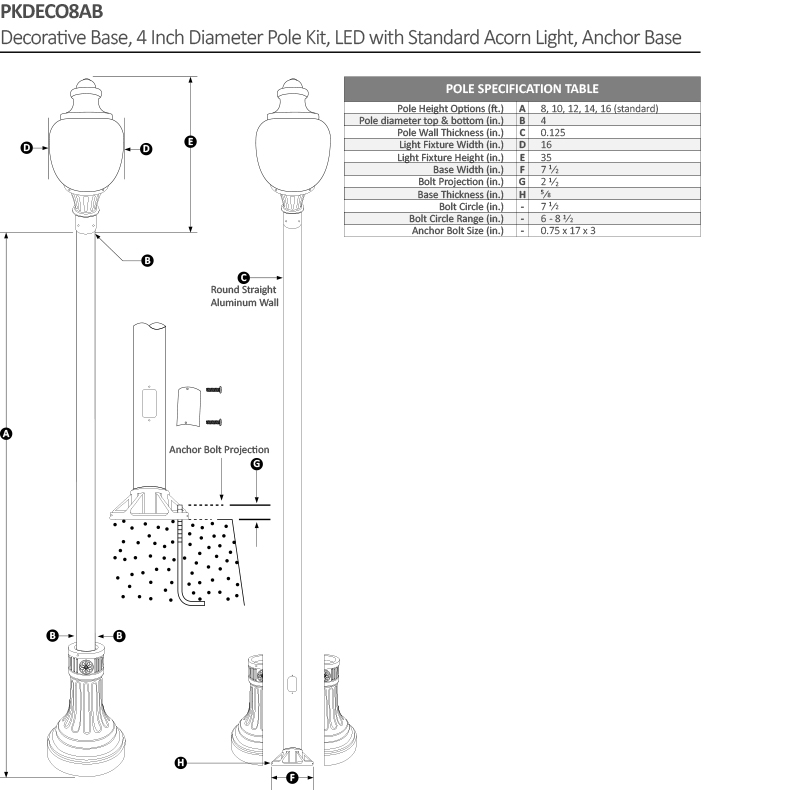

LIGHT POLE
Pole Shaft: 4 inch round straight aluminum with 0.125” wall thickness. Seamlessly extruded from 6063-T6 alloy.
Pole Height: Standard pole height is 16 ft. Optional heights are 14, 12, 10 and 8 ft. Custom heights not exceeding 16 feet are available.
Handhole: 2 1/2” X 4” size handhole is located 18 inches from the base. An aluminum handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
Decorative Base: 2-piece, clamshell style cast aluminum material. 4 stainless steel (2 each for upper and lower halves) are provided to attach the base halves together for seamless look.
Weight: 13 lbs.
Color: Black powder coat.
Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 nuts and 2 washers. Top portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided.
Maximum Wind Rating: 100 mph wind zone with 1.3 gust factor.
Warranty: 5 Years.
Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
ACORN FIXTURE
Standard LED Acorn Light Fixture: Black powder coated Cast Aluminum base slips over the top of the tenon and is secured with 4 set screws. All LED power options include a Mogul socket. Polycarbonate Acorn lens has a translucent texture and is attached to the cast aluminum base with 4 set screws.
Weight: 10 lbs.
- POLE HEIGHT:
- 16 Foot
- POLE HEIGHT:
- 14 Foot
- POLE HEIGHT:
- 12 Foot
- POLE HEIGHT:
- 10 Foot
- POLE HEIGHT:
- 8 Foot
- POLE SHAPE:
- Round
- INSTALLATION TYPE:
- Anchor Base
- WIDTH OR DIAMETER:
- 4 Inch
- WALL THICKNESS:
- 0.125 Inch
- WATTS:
- 27 Watts
- WATTS:
- 36 Watts
- WATTS:
- 45 Watts
- WATTS:
- 80 Watts
- WATTS:
- 100 Watts
- faq_category:
- decorative-led-light-pole-kits
- 5_year_warranty:
- true
- wet_location:
- true
- WATTS:
- 63 Watts
