Bastille Series Anchor Base 4 Inch Round Aluminum Light Pole Assembly

Item #
610080
$697.00

Get A Free Quote
Bastille Series anchor base aluminum pole assembly. Item Number: 610080
Product Specifications
  • Pole: 4 inch diameter round aluminum pole shaft conforms to ASTM B221 with extruded 6063 aluminum heat treated post welding to T6 temper. Shaft is free of longitudinal welds. Black powder coat, no other color options are available.
  • Anchor Base: Anchor base is made of aluminum alloy 356-T6 with bolt covers and stainless steel hex head screws.
  • Anchor Base Plate Size: 7 1/2 inch square.
  • Bolt Circle: 7 inch.
  • Handhole: 2 x 4 inch handhole with cover and stainless steel screws. Grounding provision is provided near opening.
  • Anchor Bolts: Each pole includes 4 galvanized steel anchor bolts conforming to AASHTO M314-90 Grade 55. 10 inch of threaded portion is galvanized per ASTM A153.
  • Included Components: Kits contain 4 hex nuts, 4 lock washers and 4 flat washers with all components being galvanized steel.
  • Anchor Bolt Size: 3/4 x 17 x 3 inches
  • Bolt Projection: 2 inches
  • Pole Top: A removable pole cap, 2 3/8 or 3 inch tenon and 4 inch shaft options are available.
  • Decorative Base: 2 piece clam shell design for easy and damage free installation. Four stainless steel screws are provided to attach the base halves together for seamless look.
  • Color: The entire assembly is powder coated black, no other color options are available
Wind Speed
Pole Height
70 mph
80 mph
90 mph
100 mph
8 foot
7.0
4.9
3.3
2.1
10 foot
5.6
3.9
2.7
1.7
12 foot
4.7
3.3
2.2
1.4
14 foot
4.0
2.8
1.9
1.2
16 foot
3.4
2.4
1.7
1.1

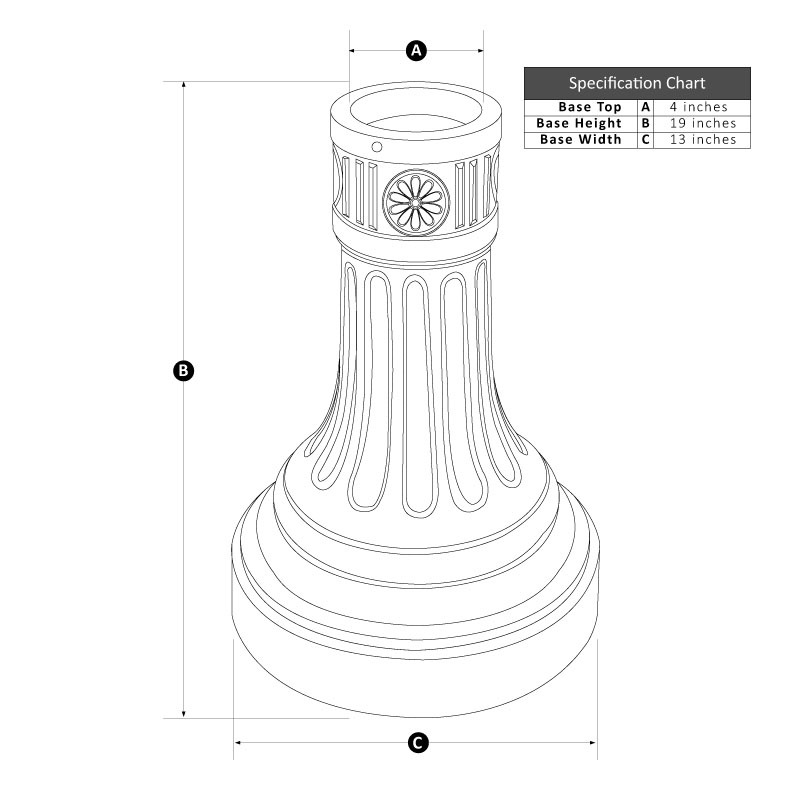

Base Specifications
  • Base Dimensions:
    • Base Height: 19 inch
    • Base Width: 13 inch
  • Aluminum Pole Diameter: 4 inch
  • Overall Height Options:
    • 8, 10, 12, 14 and 16 foot
    • Custom heights not exceeding 16 foot are available.

POLE HEIGHT:
8 Foot
POLE HEIGHT:
10 Foot
POLE HEIGHT:
12 Foot
POLE HEIGHT:
14 Foot
POLE HEIGHT:
16 Foot
INSTALLATION TYPE:
Anchor Base
POLE SHAPE:
Round
WIDTH OR DIAMETER:
4 Inch
WALL THICKNESS:
0.125 Inch
