Commercial-grade LED Light Pole Assembly Includes:
3" OD Aluminum light pole, Architectural style 75 Watt LED light and Mounting hardware.

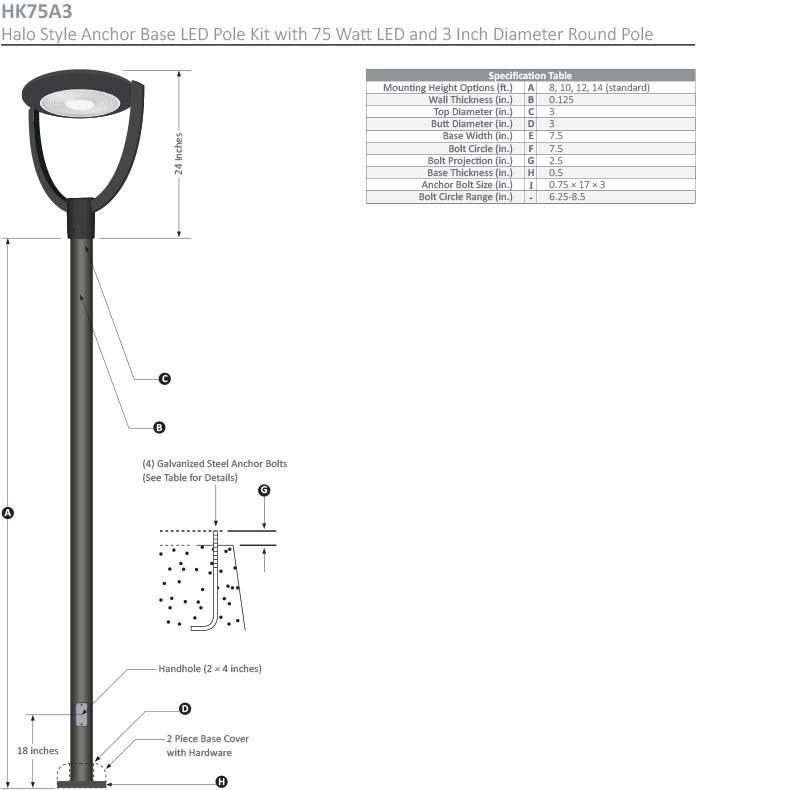

Light Pole:
Pole Shaft: 3 inch round straight aluminum with 0.125” wall thickness. Seamlessly extruded from 6063-T6 alloy.
Pole Height: Standard above grade pole height is 14 ft. Optional heights are 12, 10 and 8 ft. Custom heights are also available.
Handhole: 2” X 4” size handhole is located at 18” from the ground line. An aluminum handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
Color: Black powder coat.
Base Cover: ABS Plastic base cover with rivets.
LED Fixture:
Material: Aluminum construction.
Light Distribution: Type V
Color: Black powder coat.
Power: 75 Watts
Lumens: 9,600
Lumens/Watt: 128
Voltage: 120-277 Volt standard. 345-480 Volt option as special order.
Total Amps: 120V = 0.63, 277V = 0.27
Adjustable Color Temperature: 3000K/4000K/5000K
Shorting Cap: Shorting Cap (Standard). Twist-Lock photocell (Optional).
Dimmable: Yes. (Control is not included).
UL Listing: UL Listed for Wet Locations.
DLC Listing: DLC Premium.
IP Rating: IP65
Life Expectancy: 50,000 hours
Warranty: 5 Years.
Weight: 15 lbs.
- POLE HEIGHT:
- 14 Foot
- POLE HEIGHT:
- 12 Foot
- POLE HEIGHT:
- 10 Foot
- POLE HEIGHT:
- 8 Foot
- INSTALLATION TYPE:
- Anchor Base
- POLE SHAPE:
- Round
- WIDTH OR DIAMETER:
- 3 Inch
- WALL THICKNESS:
- 0.125 Inch
- WATTS:
- 75 Watts
- 1_stop_solution:
- true
- 5_year_warranty:
- true
- dlc:
- true
- ul_listed:
- true
- wet_location:
- true
