Commercial-grade LED Light Pole Assembly Includes:
4" OD Aluminum light pole, Architectural style 150 Watt LED light and Mounting hardware.

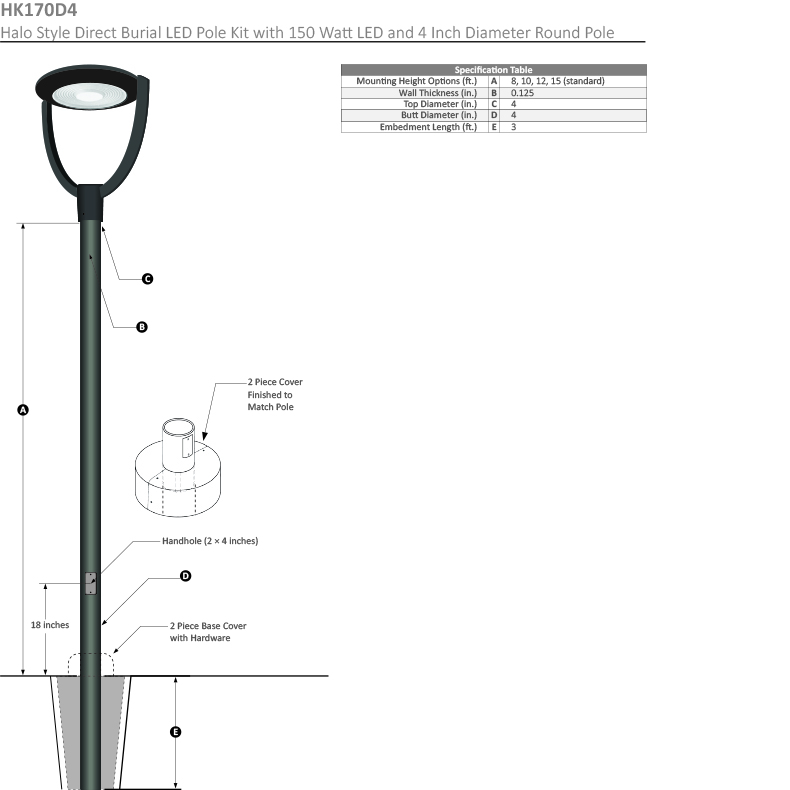

Light Pole:
Pole Shaft: 4 inch round straight aluminum with 0.125” wall thickness. Seamlessly extruded from 6063-T6 alloy.
Pole Height: Standard above grade pole height is 15 ft. Optional heights are 12, 10 and 8 ft. Custom heights are also available.
Handhole: 2-1/2” X 4” size handhole is located at 12” from the ground line. An aluminum handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
Color: Black powder coat.
Embedment: Embedment length is 4 ft. for all pole heights. A 1-3/4” X 5 3/4” size slotted opening is provided 18 inches from the ground line for conduit entry.
Base Cover: ABS Plastic base cover with rivets.
LED Fixture:
Material: Aluminum construction.
Light Distribution: Type V
Color: Black powder coat.
Power: 150 Watts
Lumens: 18,300
Lumens/Watt: 122
Voltage: 120-277 Volt standard. 345-480 Volt option as special order.
Total Amps: 120V = 1.25, 277V = 0.54
Color Temperature: 5000K standard. 4000K and 3000K options as special order.
Shorting Cap: Shorting Cap (Standard). Twist-Lock photocell (Optional).
Photocell (Optional): Twist/Lock photocell.
Dimmable: No
UL Listing: UL Listed for Wet Locations.
DLC Listing: DLC Premium.
IP Rating: IP65
Life Expectancy: 50,000 hours
Warranty: 5 Years.
Weight: 15 lbs.
- POLE HEIGHT:
- 15 Foot
- POLE HEIGHT:
- 12 Foot
- POLE HEIGHT:
- 10 Foot
- POLE HEIGHT:
- 8 Foot
- INSTALLATION TYPE:
- Direct Burial
- POLE SHAPE:
- Round
- WIDTH OR DIAMETER:
- 4 Inch
- WALL THICKNESS:
- 0.125 Inch
- WATTS:
- 150 Watts
- 5_year_warranty:
- true
- 1_stop_solution:
- true
- dlc:
- true
- ul_listed:
- true
- wet_location:
- true
