Round Tapered Direct Burial Aluminum Light Pole, 40 Foot Above Grade, 10 Inch Diameter, 0.188 Inch Wall Thickness. Item Number: 40A10RT188DB
Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.
Material
This round tapered direct burial light pole, made from aluminum alloy 6063-T6, is 40 feet high with a wall thickness of 0.188 inches and maximum EPA rating of 7.3 at 110 mph. The butt diameter is 10 inches and tapers to 6 inches in diameter at the top. To see the full specifications for our 40 foot 10 inch round tapered direct burial aluminum light pole - 0.188 inch, please click on the highlighted text. Our aluminum light poles are designed to American Association of State Highway & Transportation Officials (AASHTO) standards and meet all applicable material ASTM standards. All welders are American Welding Society (AWS) certified.
Direct Burial
This pole is designed to be embedded directly in to the ground which eliminates the need for anchor bolts and a base plate. The embedded length for this pole is: 6 feet below grade.
Fiberglass vs. Aluminum
Unlike fiberglass poles which may chalk or split, our aluminum light poles have much longer life expectancy than fiberglass poles. In addition, lawn mowers and weed whackers can cause significant damage to fiberglass poles, including pole failure. If desired, we can flatten a 1 foot - 1 foot 6 inch portion of the base. A 1 and 3/4 inch diameter wire hole including a 1 and 1/2 inch I.D. rubber grommet is included for drawing wires. This wire hole is located 1 foot - 6 feet below the grade level. In addition, aluminum is not affected by the ultraviolet fading and fiber blooming in fiberglass, resulting in costly repainting or replacement.
Pole Drilling Options

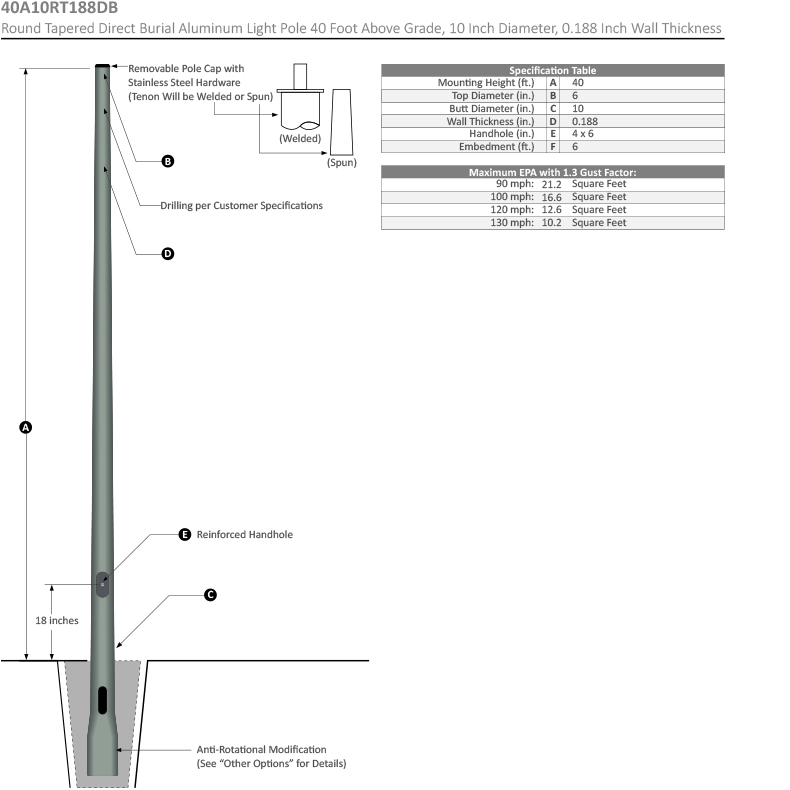

We can drill our aluminum light poles to your specifications at no extra charge. We offer such a large variety of drilling options that should you need anything other than our standard drill template shown in the images above and different drill orientation (also shown above), please contact one of our engineers at 1-800-443-8254 or e-mail them at: sales@lightmart.com.
Color Options
Our standard aluminum light pole color is Natural Aluminum finish; however, we provide 5 other colors at no extra charge. Our thermoset powder coat process is in accordance with AAMA 2604 classification and is much superior to AAMA 2603 used by other manufacturers. We provide a color chart of available standard powder-coat finishes here. However, we caution that the colors you see on your screen may not be exactly the way they look on the poles and we cannot guarantee exact color.
Pole Accessories
We offer an extensive list of OEM accessories for our aluminum light poles ranging from GFI receptacle outlets to vibration dampeners. In addition, we do not charge extra for cutting our poles to custom lengths in case what we offer requires customization.
10 Year Warranty
We are so confident that our aluminum light poles are the best that we offer an industry-leading 10 year warranty.
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.
Material
This round tapered direct burial light pole, made from aluminum alloy 6063-T6, is 40 feet high with a wall thickness of 0.188 inches and maximum EPA rating of 7.3 at 110 mph. The butt diameter is 10 inches and tapers to 6 inches in diameter at the top. To see the full specifications for our 40 foot 10 inch round tapered direct burial aluminum light pole - 0.188 inch, please click on the highlighted text. Our aluminum light poles are designed to American Association of State Highway & Transportation Officials (AASHTO) standards and meet all applicable material ASTM standards. All welders are American Welding Society (AWS) certified.
Direct Burial
This pole is designed to be embedded directly in to the ground which eliminates the need for anchor bolts and a base plate. The embedded length for this pole is: 6 feet below grade.
Fiberglass vs. Aluminum
Unlike fiberglass poles which may chalk or split, our aluminum light poles have much longer life expectancy than fiberglass poles. In addition, lawn mowers and weed whackers can cause significant damage to fiberglass poles, including pole failure. If desired, we can flatten a 1 foot - 1 foot 6 inch portion of the base. A 1 and 3/4 inch diameter wire hole including a 1 and 1/2 inch I.D. rubber grommet is included for drawing wires. This wire hole is located 1 foot - 6 feet below the grade level. In addition, aluminum is not affected by the ultraviolet fading and fiber blooming in fiberglass, resulting in costly repainting or replacement.
Pole Drilling Options
We can drill our aluminum light poles to your specifications at no extra charge. We offer such a large variety of drilling options that should you need anything other than our standard drill template shown in the images above and different drill orientation (also shown above), please contact one of our engineers at 1-800-443-8254 or e-mail them at: sales@lightmart.com.
Color Options
Our standard aluminum light pole color is Natural Aluminum finish; however, we provide 5 other colors at no extra charge. Our thermoset powder coat process is in accordance with AAMA 2604 classification and is much superior to AAMA 2603 used by other manufacturers. We provide a color chart of available standard powder-coat finishes here. However, we caution that the colors you see on your screen may not be exactly the way they look on the poles and we cannot guarantee exact color.
Pole Accessories
We offer an extensive list of OEM accessories for our aluminum light poles ranging from GFI receptacle outlets to vibration dampeners. In addition, we do not charge extra for cutting our poles to custom lengths in case what we offer requires customization.
10 Year Warranty
We are so confident that our aluminum light poles are the best that we offer an industry-leading 10 year warranty.
- POLE HEIGHT:
- 40 Foot
- INSTALLATION TYPE:
- Direct Burial
- POLE SHAPE:
- Round Tapered
- WIDTH OR DIAMETER:
- 10 Inch
- WALL THICKNESS:
- 0.188 Inch
- faq_category:
- aluminum-light-poles
- made_in_usa:
- true
- 10_year_warranty:
- true
