Pole Top Options: A removable pole cap or open top are standard options. Available tenon diameter options are: 2-3/8 in. or 3 in. Both tenon options are 4 in. long.

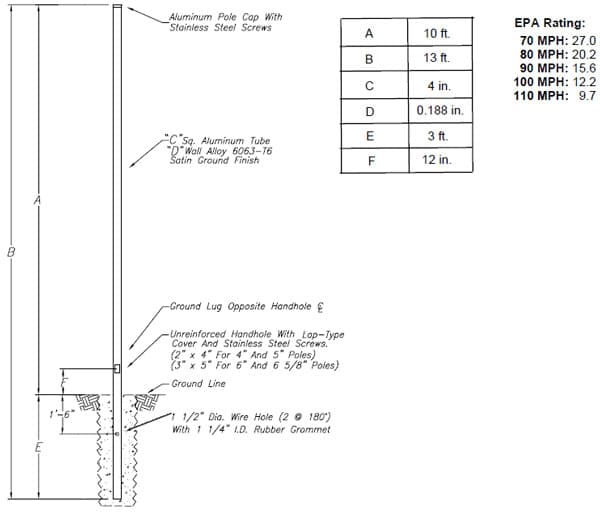

Pole Shaft: 10 ft. height above ground, 4 in. square straight aluminum with 0.188 in. wall thickness. The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy per the requirements of ASTM B221.
Handhole: 2 in. X 4 in. handhole is located 12 in. above ground. Handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole. Embedment length is 3 ft. Wire access is provided 18 in. below ground line.
Finish: Commercial grade, super durable powder coat finish. Dark Bronze is standard color. Black, White, Gray colors are available with extended lead times and additional surcharge.
Warranty: 10 Years.
Foundation Design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
|
POLE WIND RATING (EPA) with 1.3 Gust Factor |
POLE LENGTH AND WEIGHT | ||||||
| 70 mph | 80 mph | 90 mph | 100 mph | 110 mph | Embedment (ft) | Total Length (ft) | Weight (lbs) |
| 27.0 | 20.2 | 15.6 | 12.2 | 9.7 | 3 | 13 | 44 |
- POLE HEIGHT:
- 10 Foot
- INSTALLATION TYPE:
- Direct Burial
- POLE SHAPE:
- Square
- WIDTH OR DIAMETER:
- 4 Inch
- WALL THICKNESS:
- 0.188 Inch
- faq_category:
- aluminum-light-poles
- made_in_usa:
- true
- 10_year_warranty:
- true
