Pole Top Options: A removable pole cap or open top are standard (Optional) options. Available tenon diameter options are: 2-3/8 in. or 3 in. Both tenon options are 4 in. long.

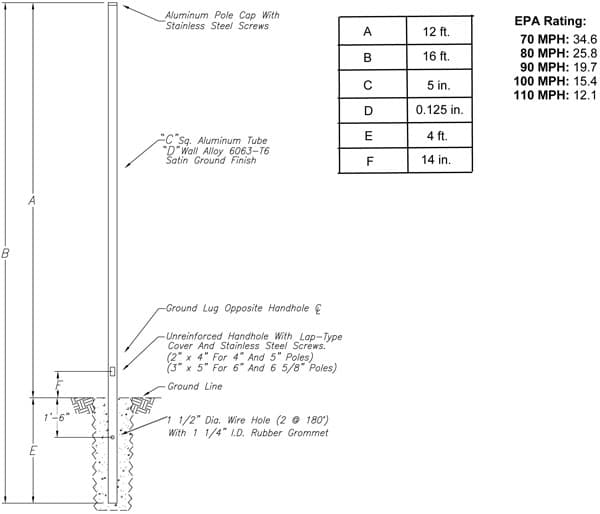

Pole Shaft: 12 ft. height above ground, 5 in. square straight aluminum with 0.125 in. wall thickness. The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy per the requirements of ASTM B221.
Handhole: 2 in. X 4 in. handhole is located 18 in. above ground. Handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
Embedment: Embedment length is 4 ft. Wire access is provided 18" below ground line.
Finish: Commercial grade, super durable powder coat finish. Dark Bronze is standard color. Black, White, Gray colors are available with extended lead times and additional surcharge.
Warranty: 10 Years.
Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
|
POLE WIND RATING (EPA) |
POLE LENGTH AND WEIGHT | ||||||
| 70 mph | 80 mph | 90 mph | 100 mph | 110 mph |
Embedment |
Total |
Weight |
| 34.6 | 25.8 | 19.7 | 15.4 | 12.1 | 4 | 16 | 46 |
- POLE HEIGHT:
- 12 Foot
- INSTALLATION TYPE:
- Direct Burial
- POLE SHAPE:
- Square
- WIDTH OR DIAMETER:
- 5 Inch
- WALL THICKNESS:
- 0.125 Inch
- faq_category:
- aluminum-light-poles
- made_in_usa:
- true
- 10_year_warranty:
- true
