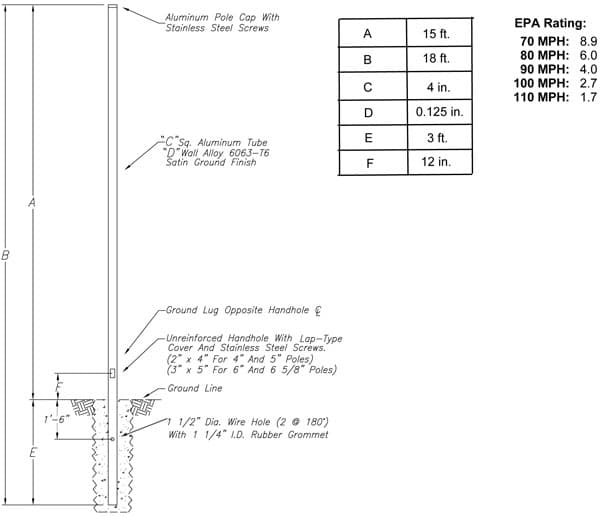

Square Direct Burial Aluminum Light Pole, 15 Foot Above Grade, 4 Inch Width, 0.125 Inch Wall Thickness. Item Number: 15A4SS125DB
Pole Top Options: A removable pole cap or open top are standard options. Available tenon diameter options are: 2-3/8 in. or 3 in. Both tenon options are 4 in. long.
Pole Shaft: 15 ft. height above ground, 4 in. square straight aluminum with 0.125 in. wall thickness. The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy per the requirements of ASTM B221.
Handhole: 2 in. X 4 in. handhole is located 12 in. above ground. Handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
Embedment: Embedment length is 3 ft. Wire access is provided 18 in. below ground line.
Finish: Commercial grade, super durable powder coat finish. Dark Bronze is standard color. Black, White, Gray colors are available with extended lead times and additional surcharge.
Warranty: 10 Years.
Foundation Design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
|
POLE WIND RATING (EPA) with 1.3 Gust Factor |
POLE LENGTH AND WEIGHT | ||||||
| 70 mph | 80 mph | 90 mph | 100 mph | 110 mph | Embedment (ft) | Total Length (ft) | Weight (lbs) |
| 8.9 | 6.0 | 4.0 | 2.7 | 1.7 | 3 | 18 | 41 |
- POLE HEIGHT:
- 15 Foot
- INSTALLATION TYPE:
- Direct Burial
- POLE SHAPE:
- Square
- WIDTH OR DIAMETER:
- 4 Inch
- WALL THICKNESS:
- 0.125 Inch
- made_in_usa:
- true
- 10_year_warranty:
- true
