Square Direct Burial Aluminum Light Pole 18 Foot Above Grade, 5 Inch Wide, 0.188 Inch Wall Thickness

Item #
18A5SS188DB
  • Dark Bronze Powder Coat (Standard)
  • Black Powder Coat +$60
  • White Powder Coat +$60
  • Gray Powder Coat +$60
$1,328.00

Get A Free Quote

Highlights:

Square Direct Burial Aluminum Light Pole, 18 Foot Above Grade 5 Inch Width, 0.188 Inch Wall Thickness. Item Number: 18A5SS188DB
Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

Material
This 5 inch Square direct burial light pole made from aluminum alloy 6063-T6, is 18 feet high above grade with a wall thickness of 0.188 inches and maximum EPA rating of 4.5 at 110 mph. The overall pole height including the embedded portion is: 22 feet. To see the full specifications for our 18 foot above grade 5 inch square direct burial aluminum light pole - 0.188 inches. please click on the highlighted text. Our aluminum light poles are designed to American Association of State Highway & Transportation Officials (AASHTO) standards and meet all applicable material ASTM standards. All welders are American Welding Society (AWS) certified.

Direct Burial
This pole is designed to be embedded directly into the ground which eliminates the need for anchor bolts and a base plate. The embedded length for this pole is: 4 feet below grade.

Pole Drilling Options

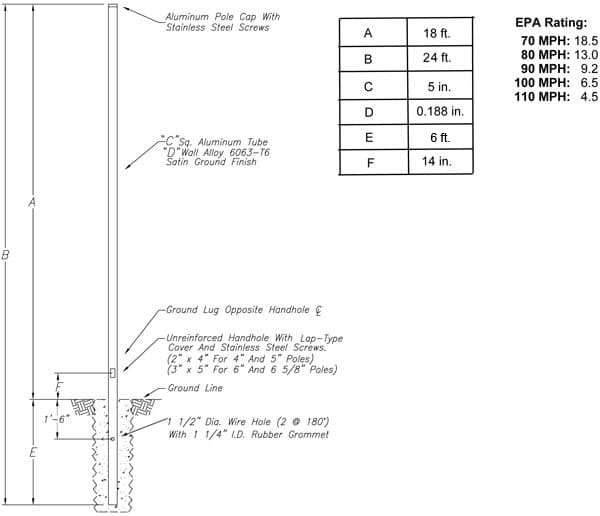

We can drill our aluminum light poles to your specifications at no extra charge. We offer such a large variety of drilling options that should you need anything other than our standard drill template shown in the images above and different drill orientation (also shown above), please contact one of our engineers at 1-800-443-8254 or e-mail them at: sales@lightmart.com.

Color Options
We provide 5 powder-coat colors at no extra charge. Our thermoset powder coat process is in accordance with AAMA 2604 classification and is much superior to AAMA 2603 used by other manufacturers. We provide a color chart of available standard powder-coat finishes here. However, we caution that the colors you see on your screen may not be exactly the way they look on the poles and we cannot guarantee exact color.

Pole Accessories
We offer an extensive list of OEM accessories for our aluminum light poles ranging from GFI receptacle outlets to vibration dampeners. In addition, we do not charge extra for cutting our poles to custom lengths in case what we offer requires customization.

5 year warranty
We are so confident that our aluminum light poles are the best that we offer an industry-leading 5 year warranty.
POLE HEIGHT:
18 Foot
INSTALLATION TYPE:
Direct Burial
POLE SHAPE:
Square
WIDTH OR DIAMETER:
5 Inch
WALL THICKNESS:
0.188 Inch
faq_category:
aluminum-light-poles
made_in_usa:
true
5_year_warranty:
true

ALUMINUM LIGHT POLES FAQ'S

What are the advantages of aluminum light poles?
Aluminum light poles are about 40% the weight of steel making them easier to unload and install. They have a long lifespan and are easily recycled. Aluminum is corrosion-resistant and self-protecting. It reacts with the oxygen in the atmosphere and forms a thin layer of aluminum oxide. Aluminum oxide is an electrical insulator but has a fairly high thermal conductivity. Aluminum light poles are often powder coated for cosmetic purposes.
What is the difference between anchor base and direct burial lightpoles?
Anchor base poles are used where the greatest rigidity is required. They are attached to a concrete foundation by a base plate and held in place with anchor bolts. The concrete foundation can be poured or precast with adjustable tee bolts. When a concrete footing is poured, anchor bolts are placed in the concrete and held in the correct position with a plywood template. Direct burial or embedded poles are buried directly into the ground. The height of a direct burial pole is specified as the height above grade and can vary from 3 feet to 10 feet. High wind speed areas require a direct burial pole with a deeper burial depth.
What is the warranty on aluminum light poles?
What good are savings when you receive low-quality products from those who do not know much about light poles and lighting? We have the best warranty in the business, period. We offer a 10 year no excuse warranty on aluminum pole products simply because we deliver products of the highest quality. In addition, we do not play games with you when it comes to a defective item. Our products are subjected to stringent quality control measures, but if an item is defective, our first priority is to send you a replacement right away.
